Removing the knock detection is simple: Resolder R118 and R119 into R142, 143. Then, Remove R101 (optional). Finally, remove the knock board itself.

  • no_knock.jpg:

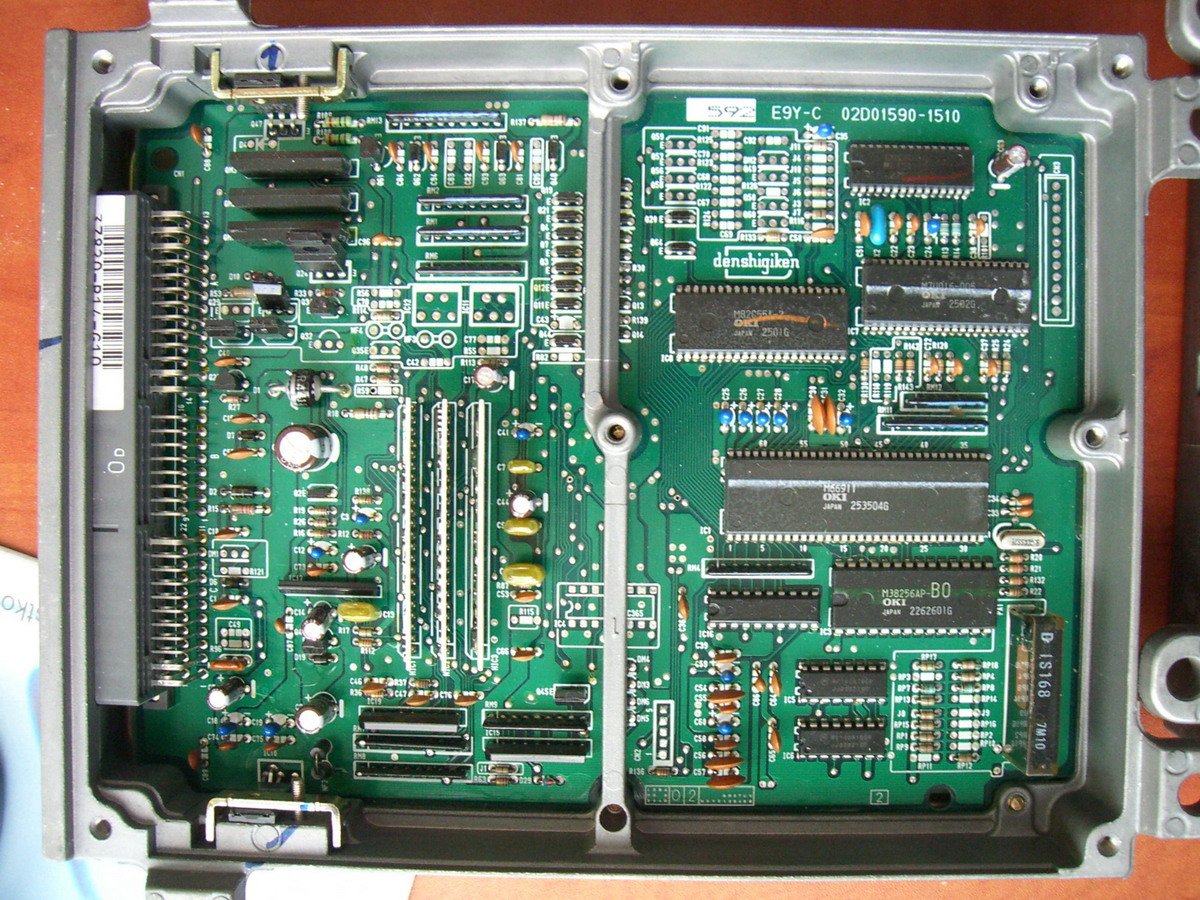

Here's what a knockless P14 looks like: CLick Here!

Originaly posted by prelude-driver here is how it works,

R101 is a current limit to a signal on the KS, you need it with KS but you can leave it in because it does not go anywhere else.

R118/119 are current limiters on the clock & data signals to the KS, if you remove the KS you must remove them because of the next resistors.

R142/143 are pullup resistors for the clock & data lines, you dont use them if you have a KS because there are pullups on the KS itself, but if the KS is removed then you must fit these to stop the lines from floating. they are 10k btw.
