 <<O>>  Difference Topic 02D01980-1500 (r1.4 - 02 Dec 2006 - Home.enigma06)
Changed:
<
<

  • R144: 10k ohm resistor
>
>

  • R144: 12k ohm resistor (Can use 10k here)
Changed:
<
<

  • R144- 10k resistor
>
>

  • R144- 12k resistor (Can use 10k here)

 <<O>>  Difference Topic 02D01980-1500 (r1.3 - 25 Apr 2005 - Home.thetse)
Changed:
<
<

%META:FILEATTACHMENT{name="Picture009.jpg" attr="" comment="" date="1080613881" path="C:\Documents and Settings\AJ\Desktop\ECU-HyperDuckTuning\PICS-HOWTO\VARIOUS-PICS\p75\Picture 009.jpg" size="130038" user="eg6ajk" version="1.1"}%

>
>

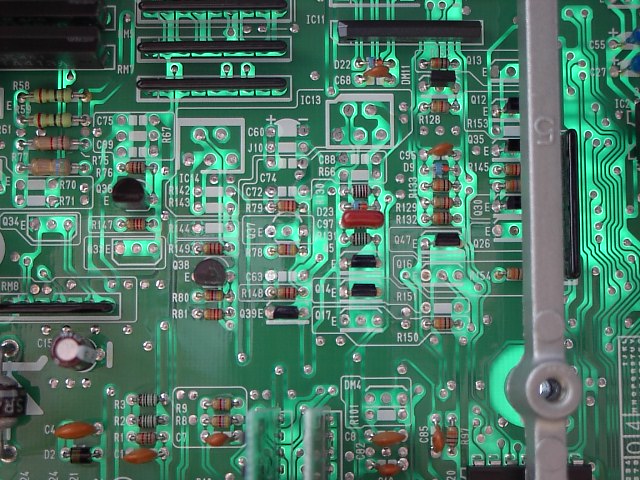

  • Picture009.jpg:

%META:FILEATTACHMENT{name="Picture009.jpg" attr="h" comment="" date="1080613881" path="C:\Documents and Settings\AJ\Desktop\ECU-HyperDuckTuning\PICS-HOWTO\VARIOUS-PICS\p75\Picture 009.jpg" size="130038" user="eg6ajk" version="1.1"}%


 <<O>>  Difference Topic 02D01980-1500 (r1.2 - 30 Mar 2004 - Home.eg6ajk)
Added:
>
>

%META:FILEATTACHMENT{name="Picture009.jpg" attr="" comment="" date="1080613881" path="C:\Documents and Settings\AJ\Desktop\ECU-HyperDuckTuning\PICS-HOWTO\VARIOUS-PICS\p75\Picture 009.jpg" size="130038" user="eg6ajk" version="1.1"}% %META:FILEATTACHMENT{name="p75conversion.jpg" attr="" comment="" date="1080614016" path="C:\Documents and Settings\AJ\Desktop\ECU-HyperDuckTuning\PICS-HOWTO\VARIOUS-PICS\p75conversion.jpg" size="167595" user="eg6ajk" version="1.1"}%


 <<O>>  Difference Topic 02D01980-1500 (r1.1 - 05 Mar 2004 - Home.blundar)
Added:
>
>

%META:TOPICINFO{author="blundar" date="1078516282" format="1.0" version="1.1"}% Editor's note: the small list does not appear to have the required parts for the IABs

Author: eg6ajk Date: 05-24-03 15:10

my parts list seems to be alot smaller:

changes to the ECU on top of standard external ROM changes by adding:

  • C60: 1uf 35V tantlum
  • D11: 600V 1AM diode
  • IC14: SK5151S
  • J10: 0hm resistor/jumper
  • R142: 10k ohm resistor
  • R143: 45k ohm resistor (51k ohm is the recommended resistor)
  • R144: 10k ohm resistor
  • Q26: C2785/C2458Y tranistor
  • Q37: C2785/C2458Y tranistor

Removed:

  • RP17: 0hm resistor
  • J4: 0hm resistor

EG come, EG go!

and the original list...

Author: Darksmiles

Date: 09-05-03 12:13

Hey Flyrod- I just saw your post about the P75-P72 Use the USDM GSR P72 w/ knock disabled ROM .

Here is my final list for the conversion:

Add:

  • Q34 - D1780
  • D11 - Clamping Diode
  • IC14 - 515 X High Side Switch
  • J10 - Jumper
  • R142 - 10k resistor
  • R143 - 51k resistor
  • R144- 10k resistor
  • Q17 - A143
  • Q26 - C2785
  • R107 - 220 ohm resistor
  • C94 - 4.7uF tantalum electrolytic capacitor
  • R115 - 220 ohm resistor
  • R116 - 220 ohm resistor
  • J5 - jumper
  • J3 - jumper
  • J1 - Jumper

Remove:

  • R90
  • C71
  • J4

That's it...runs great!

Andrew
