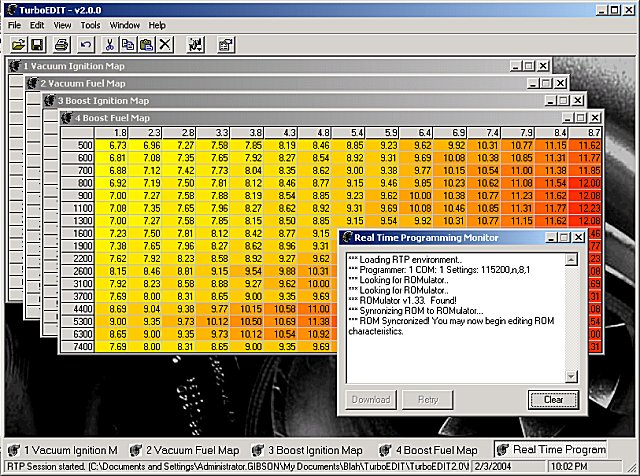

TurboEdit has since largely replaced Ghettodyne as the most actively developed OBD0 ROM editor. It supports ROMs based off the PM6 and PM7 codebase at this point. Close communication between [[Home.TeamOBD0][Team OBD0] and Jason Parker, TE's author, ensure that it supports the latest features quickly. As you can see, the interface is very similar to earlier editors:

TurboEdit has since largely replaced Ghettodyne as the most actively developed OBD0 ROM editor. It supports ROMs based off the PM6 and PM7 codebase at this point. Close communication between Team OBD0 and Jason Parker, TE's author, ensure that it supports the latest features quickly. As you can see, the interface is very similar to earlier editors:

• Turboedit forum on PGMFI - editor mainly
• 8XC154 Development forum on PGMFI - new ROMs and code

Crome (OBD1)

BRE (Ben's ROM Editor - OBD0 Vtec)

• BRE forum on PGMFI
• OBD0 Vtec development forum on PGMFI

Uberdata was the first publicly available ROM Editor for OBD1 Civics/Integras, written by Blake Warner (Uberteg). It uses primarily the P72 and P75 code, but has been adapted to run almost any Honda motor. It has solid boost support, support for the Transtronics Romulator, and recently added support for inline assembly scripting. It runs on windows.

• Uberdata forum on PGMFI
• The Home of Uberdata
• OBD1 Development forum on PGMFI

Crome (OBD1)

• Crome forum on PGMFI
• OBD1 Development forum on PGMFI

Chipping an ECU: hardware

Chipping an ECU: hardware

Chips and ROM Burners

In order to program an EPROM, you will need a ROM burner. It does not really matter which model you get as long as it can program the chips you need. A cheap, hobbyist-oriented burner is available for less than $100 ready assembled (or less in kit form) from www.batronix.com. Another unit is available from www.xtronics.com and is the programmer of choice for Hondata. Needham Electronics also make a quality programmer. The point of all this is quite simply that it doesn't matter WHICH programmer you have; being able to program 2XC256 chips is what matters.

ROM burners are the devices used to program chips. It does not really matter which model you get as long as it can program Chips For ECUs. The Rom Burner Wiki entry has a list of some common types of burners used for ECU programming, and has links to reviews and prices in some cases. It doesn't matter WHICH programmer you have; being able to program the right chips matters.

Soldering and Desoldering gear

On the cheaper/DIY side, there are several other tools that work adaquately. A cheap Desoldering Iron will work pretty well, especially with the right tip and some small mods. Often, an existing Desoldering Tool can be modified to make it more effective. Desoldering Braid can be very effective when used properly, and can even be superior to a Desoldering Station in some cases.

A quality Soldering Iron is another tool that you will thank yourself for purchasing every time you use it. Small tips and less power will make things easier on you. Temperature control is a nice feature, although by no means required. I have had a lot of luck with the cheapie 12-15W 3-prong blue Rat Shack irons in a pinch.

Learning To Solder and Desoldering Tips contain a lot of good tips for those starting out, but there really is no substitute for practice. Working on a couple of sacrificial ECUs/circuit boards prior to an ECU that needs to go in your vehicle is probably a really good idea. Much like welding, getting comfortable with the iron, solder and workspace you have is key! I messed up about half of the first dozen ECUs I did. Most were simple poor solder joints that were easily fixed, although I cooked two PR3s by not desoldering them fully and ripping the pads + traces off the board. Repairing a destructive soldering adventure like that can be very stressful and difficult. After buying my Desoldering Station, I've fried approximately 3 ECUs out of 200. (and one of those I still think was a bad alternator/voltage reg...) Part of this was certainly practice, but having the right tools made a big difference.

I purchased a Xytronics desoldering/soldering station with temperature control for under $400 shipped from Howard Electronics Inc. Professional desoldering tools with integrated vacuum sources can be obtained readily from ebay or other merchants - Pace and Metcal gear is always on ebay. You can get a desoldering tool from radio shack, but it does not work terribly well and I would highly recommend borrowing or buying a true desoldering iron if possible.

Hopefully, at this point, you have learned a little about ECUs, how they work and break, and how to modify them. If you have further interest check out the rest of the Wiki, or Further Reading.

Hopefully, at this point, you have learned a little about ECUs, how they work and break, and how to modify them. If you have further interest check out the rest of the Wiki, or Further Reading. The ECU is just a tool allowing precise fuel and timing delivery - knowing how to modify the ECU itself is only half the battle to having a well tuned car. Spend the time and budget the money for the right tools to tune the car, not just chip the ECU.

Introduction to ECU Chipping

Introduction to ECU Chipping

How it all works

You can completely change the operating characteristics of an engine by changing the fuel tables around. As an example, a PM6 (88-91 Civic/CRX Si) ECU is normally used to run a D16A6, ~100HP. By little more than changing the fuel, ignition tables and the revlimiter, a PM6 can run a DOHC ZC, ~135HP, like it came out of the factory. Additionally, little more than even more fuel/ignition map changes and revlimiter changes are all that is needed to make it run a B18A/B18B or a B20B! In another more extreme example, a friend of mine recently had success running a 2G accord engine with a GM computer! Please, be careful changing your engine's fuel/timing tables - understand that timing changes can completely change the operating characteristics of the engine! You can destroy your engine in seconds with a bad program. Please be very careful, especially when doing baseline tunes as opposed to modifying an existing tune.

You can completely change the operating characteristics of an engine by changing the fuel and timing tables around. As an example, a PM6 (88-91 Civic/CRX Si) ECU is normally used to run a D16A6, ~100HP. By little more than changing the fuel, ignition tables and the revlimiter, a PM6 can run a DOHC ZC, ~135HP, like it came out of the factory. Additionally, little more than even more fuel/ignition map changes and revlimiter changes are all that is needed to make it run a B18A/B18B or a B20B! Virutally the same ECU hardware runs a D16Z6 SOHC vtec and a B16A2/A3 DOHC vtec motor - swapping chips will let one motor's ECU run the other motor, and vise versa. In another more extreme example, a friend of mine recently had success running a 2G accord engine with a GM computer!

With that out the way, we are now going to pretend that you now know what fuel and timing adjustments you would like to make, because an adequate explanation of how to tune a car is well beyond both the scope of this article and my expertise. Proper tools and technique were briefly touched earlier, but by no means should be considered definitive.

As I hope you have gathered, there is a certain amount of art and a lot of skill/experience involved in tuning a car well. An adequate explanation of how to tune a car perfectly is far beyond both the scope of this article and my expertise. Please, be careful changing your engine's fuel/timing tables - understand that timing changes can completely change the operating characteristics of the engine! Please be very careful, especially when doing baseline tunes - you can destroy your engine in seconds with a bad program. Use proper tools (wideband, EGT, accelerometer, dyno) whenever possible. We are now going to assume that you now know what fuel and timing adjustments you need to make, regardless of whether this is actually the case. With that hefty disclaimer out of the way, the tools and methods from this point forwards are going to become a lot more specific:

Fuel and timing tables are stored in the middle of the code running the ECU. Distinguishing them from code is generally not THAT hard because they "look" different than the pseudorandom data that runs the computer. A hex editor will let you manipulate the raw data in the ECU. WinHex is a quality, shareware hexeditor available from www.download.com. You might want to grab some checksum utilities from www.keil.com as they're generally useful.

TOC: No TOC in "Library.IntroductionToECUChipping"

In winhex:

Hexediting and Raw editing

http://www.pgmfi.org/resources/articles/Chipping_Basics_12-02/winhex.gif

Fuel and timing tables are stored in the middle of the code running the ECU. Distinguishing them from code is generally not THAT hard because they "look" different than the pseudorandom data that runs the computer. A hex editor will let you manipulate the raw data in the ECU. WinHex is a quality, shareware hexeditor available from www.download.com. You might want to grab some checksum utilities from www.keil.com as they're generally useful.

In winhex:

So, you've found the fuel and timing tables in your ECU's program, edit away. Most ECUs have a checksum routine - the checksum gods must be appeased after any changes to the ROM are made or the car will not run properly.

Alternatively, you can use a ROM Editor. Although these programs are generally specific to one or more ECUs, most ROM editors are fairly similar visually - Understanding Maps has a lot of pictures and more hands-on explanation of editor-based fuel and timing table adjustment. Ghettodyne (available at http://www.ghettodyne.com) is a free ROM editor that currently supports the PM6 (88-91 CRX/Civic Si) ECU. Fortunately PM6 ROMs will work in almost any 88-91 MULTI-POINT INJECTION CIVIC/INTEGRA ECU (PG7, PM6, PM7, PM8, PR4) so this is not as limiting as it initially sounds. To give you an idea of what ghettodyne looks like:

So, you've found the fuel and timing tables in your ECU's program, edit away. Most ECUs have a Check Sum routine - the checksum gods must be appeased after any changes to the ROM are made or the car will not run properly. It would take a long time to tune a car if everyone only had hexeditors at their disposal. In many cases, ROM editors are available to assist in the tuning process.

http://www.pgmfi.org/resources/articles/Chipping_Basics_12-02/ghettodyne_small.jpg

ROM Editors

At this point, the assumption will be made (regardless of whether it is actually true) that you have successfully created a new ROM image and you want to put it into an ECU. The next step towards reprogramming is to take the electronic image you have created and program it into an EPROM(Erasable Programmable Read Only Memory). EPROMs for automotive use are generally 128K, 256K or 512k in size. Use the same size EPROM as the factory uses. Almost all 88-95 Hondas use a 27 C256 EPROM. (A quick note about chips: 27 CXXX chips are generally UV erasable - you need a special UV light; blacklights do not work. 28 CXXX are generally EEPROM - Electrically Erasable and are not pin-compatible... and 29 CXXX are generally Flash ROMs and are pin-compatible. There are exceptions to these rules, however.)

Remember, anything you can do with a ROM editor can be done by hand with a hexeditor too.

In order to program an EPROM, you will need a ROM burner. It does not really matter which model you get as long as it can program the chips you need. A cheap, hobbyist-oriented burner is available for less than $100 ready assembled (or less in kit form) from www.batronix.com. Another unit is available from www.xtronics.com and is the programmer of choice for Hondata. Needham Electronics also make a quality programmer. The point of all this is quite simply that it doesn't matter WHICH programmer you have; being able to program 2XC256 chips is what matters.

Although most ROM Editors are specific to one or more ECUs, most are fairly similar visually - Understanding Maps has a lot of pictures and more hands-on explanation of editor-based fuel and timing table adjustment. Most of the concepts will apply to any and all editors.

Now, with your new EPROM ready, crack the case of your ECU. All 92-95 ECUs made by Honda were able to accept an external EPROMs, even if they did not come with one from the factory. All 92-95 ECUs use the same procedure for chipping. Beginners beware of Japanese ECUs as they use surface mount components that are marginally harder to work with than US/European ECUs. The section of the example P28 93 Civic Si ECU that is important for chipping is outlined in red in the following picture: (Honda was nice and outlined it in a dashed white line for you on the board too)

Ghettodyne (OBD0)

http://www.pgmfi.org/resources/articles/Chipping_Basics_12-02/P28chipping_small.jpg

Turboedit (OBD0)

First, you must de-solder the parts silkscreened in white on the circuit board. I purchased a Xytronics desoldering/soldering station with temperature control for under $400 shipped from Howard Electronics Inc. Professional desoldering tools with integrated vacuum sources can be obtained readily from ebay or other merchants - Pace and Metcal gear is always on ebay. You can get a desoldering tool from radio shack, but it does not work terribly well and I would highly recommend borrowing or buying a true desoldering iron if possible.

Once all the pads are desoldered and you can see through holes for components in the red section above, you need to start soldering in components. No bizarre components are used - everything should be readily obtainable from your local electronics store, Radio Shack, Digikey, Newark Electronics or just about any other electronic parts distributor. Honda was nice enough to label on the board where everything goes. Place the 74 HC373 chip on the board where indicated and solder it in place. R54 should be filled with a 1k to 1.2k resistor(the exact value does not matter). C51 and C52 are 0.1µf ceramic disc capacitors(12V or better will work fine). Place a 28 pin socket for the ROM where 27256 is marked. (BTW, spend a bit more money and get the much higher quality machined-pin sockets instead of the cheapy bent metal leaf type.) Once the socket is in place, place a the ROM you programmed earlier in it. Finally, connect J1 with a small wire to enable the external ROM. No changes other than cutting J1 are needed to restore the ECU to its original state.

Crome (OBD1)

Here you can see a chipped P28 ECU. The person who chipped it used a socket for the 74HC373 as well as for the ROM socket, and used a real jumper instead of just connecting J1 with a wire. Nevertheless, it will give you an idea of what it should look like when you are done:

Uberdata (OBD1)

Chipping an ECU: hardware

http://www.pgmfi.org/resources/articles/Chipping_Basics_12-02/P28done_small.jpg

In order to program an EPROM, you will need a ROM burner. It does not really matter which model you get as long as it can program the chips you need. A cheap, hobbyist-oriented burner is available for less than $100 ready assembled (or less in kit form) from www.batronix.com. Another unit is available from www.xtronics.com and is the programmer of choice for Hondata. Needham Electronics also make a quality programmer. The point of all this is quite simply that it doesn't matter WHICH programmer you have; being able to program 2XC256 chips is what matters.

I purchased a Xytronics desoldering/soldering station with temperature control for under $400 shipped from Howard Electronics Inc. Professional desoldering tools with integrated vacuum sources can be obtained readily from ebay or other merchants - Pace and Metcal gear is always on ebay. You can get a desoldering tool from radio shack, but it does not work terribly well and I would highly recommend borrowing or buying a true desoldering iron if possible.

OBD0 ECU Chipping

If you have a OBD0 ECU, chipping the ECU might not be such an easy option for you. Almost ALL 90-91 PM6, PM7, PR4 and PP5(with catalytic converter) ECUs had external EPROMs, and are easy to change the program on. Almost all 88-89 PG7, PM6, PM7 and 88-91 PM8 ECUs did not have an external EPROM. It is possible to chip these ECUs, but it requires considerably more work and is beyond the scope of this article. The following ECU is a PM7 that does not have an external ROM:

If you are luckier and have an ECU with an external EPROM from the factory, the ECU you have will look more like this:

http://www.pgmfi.org/resources/articles/Chipping_Basics_12-02/trickyPM7small.jpg

An OBD0 ECU with an external EPROM is very simple to chip. First, cut all 28 pins with a razor blade or utility knife. BE CAREFUL YOU DO NOT SLIP AS YOU CAN PERMANENTLY DAMAGE THE CIRCUIT BOARD. It is not absolutely necessary to do this before desoldering, but removing the chip will make it much easier, particularly if you do not have a good desoldering station. Once the original ROM is desoldered and removed and you can see through the holes in the circuit board, add a socket for an EPROM and then place the new ROM you have created into the socket.

OBD1 ECU chipping

If you are luckier, the ECU you have will look more like this:

First, you must de-solder the parts silkscreened in white on the circuit board. Once all the pads are desoldered and you can see through holes for components in the red section above, you need to start soldering in components. No bizarre components are used - everything should be readily obtainable from your local electronics store, Radio Shack, Digikey, Newark Electronics or just about any other electronic parts distributor.

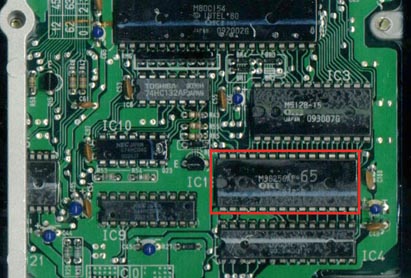

http://www.pgmfi.org/resources/articles/Chipping_Basics_12-02/PM6tochip_small.jpg

Honda was nice enough to label on the board where everything goes. Place the 74 HC373 chip on the board where indicated and solder it in place. R54 should be filled with a 1k to 1.2k resistor(the exact value does not matter). C51 and C52 are 0.1µf ceramic disc capacitors(12V or better will work fine). Place a 28 pin socket for the ROM where 27256 is marked. (BTW, spend a bit more money and get the much higher quality machined-pin sockets instead of the cheapy bent metal leaf type.) Once the socket is in place, place a the ROM you programmed earlier in it. Finally, connect J1 with a small wire to enable the external ROM. No changes other than cutting J1 are needed to restore the ECU to its original state.

Here you can see a chipped P28 ECU. The person who chipped it used a socket for the 74HC373 as well as for the ROM socket, and used a real jumper instead of just connecting J1 with a wire. Nevertheless, it will give you an idea of what it should look like when you are done:

If you are lucky enough to get an OBD0 ECU with an external EPROM, it is very simple to chip it. First, remove the ROM present by cutting all 28 pins with a razor blade or utility knife. BE CAREFUL YOU DO NOT SLIP AS YOU CAN PERMANENTLY DAMAGE THE CIRCUIT BOARD. It is not absolutely necessary to do this before desoldering, but removing the chip will make it much easier, particularly if you do not have a good desoldering station. Once the original ROM is desoldered and removed and you can see through the holes in the circuit board, add a socket for an EPROM and then place the new ROM you have created into the socket.

If you have a OBD2 ECU, you are just going to have to wait or buy commercial Tech Tom gear.

OBD2 ECU Chipping

Troubleshooting

Conclusion

%META:FILEATTACHMENT{name="ghettodyne_small.jpg" attr="h" comment="view of ghettodyne (small)" date="1080590546" path="C:\Documents and Settings\Administrator\Desktop\temp\wiki\dfs\ghettodyne_small.jpg" size="75773" user="blundar" version="1.1"}% %META:FILEATTACHMENT{name="P28chipping_small.jpg" attr="h" comment="P28 chipping (small)" date="1080590564" path="C:\Documents and Settings\Administrator\Desktop\temp\wiki\dfs\P28chipping_small.jpg" size="64300" user="blundar" version="1.1"}% %META:FILEATTACHMENT{name="P28done_small.jpg" attr="h" comment="P28 done (small)" date="1080590584" path="C:\Documents and Settings\Administrator\Desktop\temp\wiki\dfs\P28done_small.jpg" size="60506" user="blundar" version="1.1"}% %META:FILEATTACHMENT{name="PM6tochip_small.jpg" attr="h" comment="PM6to chip (small)" date="1080590616" path="C:\Documents and Settings\Administrator\Desktop\temp\wiki\dfs\PM6tochip_small.jpg" size="56965" user="blundar" version="1.1"}% %META:FILEATTACHMENT{name="trickyPM7small.jpg" attr="h" comment="88-89 ROM-less ECU (small)" date="1080590649" path="C:\Documents and Settings\Administrator\Desktop\temp\wiki\dfs\trickyPM7small.jpg" size="66239" user="blundar" version="1.1"}% %META:FILEATTACHMENT{name="winhex.gif" attr="h" comment="screenshot of winhex" date="1080591273" path="C:\Documents and Settings\Administrator\Desktop\temp\wiki\dfs\winhex.gif" size="19150" user="blundar" version="1.2"}% %META:FILEATTACHMENT{name="TE2_SS.jpg" attr="h" comment="TE2 screenshot" date="1080592135" path="C:\Documents and Settings\Administrator\Desktop\temp\wiki\dfs\TE2_SS.jpg" size="121953" user="blundar" version="1.1"}%

This does bring us to a valid point. Tuning is best something done on a dyno, or at least with something to give a very objective measure of how the car is responding. Wideband O2 meters and EGT probes can give you some idea of what is going on, but they are generally more effective at tuning air-fuel ratio than timing adjustment. The "butt dyno" is a totally inappropriate way to determine how the car is performing - most of the changes you will make to a computer program will be subtle enough that you probably will not be able to "feel" them. Beware of most aftermarket "chips": more often than not these programs just dump more fuel and increase timing greatly while doing things like raising revlimiters far beyond safe levels. There are very limited gains to be had from most "performance chips." Tuning not "chipping" generally produces usable, real world gains. That being said, changing the program of a ECU is generally not that tricky. First it would probably be wise to focus on some basics of how ECUs work so that it is more apparent where we could makes changes to have a positive effect on performance.

This does bring us to a valid point. Tuning is best something done on a dyno that can simulate loads (such as a Dynapack or Mustang dyno). Dynojets are only useful for tuning a much narrow range of operating conditions, namely acceleration at wide open throttle through the rev reange. When a Dyno is not available, something to give an objective measure of how the car is responding is a good second choice. Wideband O2 meters and EGT probes can give you some idea of what is going on. Widebands generally provide more direct information about Air Fuel Ratio, but they are generally ineffective for timing adjustment. EGT probes tell how how the exhaust leaving a motor is, which can be used to infer a lot of information. If Air Fuel Ratio is left relatively constant, most changes in EGTs can be attributed to timing adjustment. Air Fuel Ratios will causes changes in EGTs! If you are trying to use an EGT to tune your timing, make sure you have your AFRs nailed reasonably close to your target first. This article in intended as a brief introduction, so enough of that.

Don't despair if you don't have access to a dyno, however. Accelerometers (like the G-Spot) measure acceleration forces with fiarly good (<1%) precison (consistency, repeatability). If you can record this information as part of your Data Logging procedure, you can do some math knowing the weight of the vehicle and its gearing to come up with horsepower and torque output figures for the car. Again, this method has fairly good precision (REPEATABILITY) but relatively poor accuracy (i.e. numbers will almost never match a calibrated dyno) - what this means for you as a tuner is that if your calculated horsepower and torque numbers increase consistently, you the changes you made improved the performance of the car. The numbers themselves don't mean a lot, but if you can produce significant consistent improvements you have tuned the car better.

A final note before more practical matters - the "butt dyno" is a totally inappropriate way to determine how the car is performing - most of the changes you will make to a computer program will be subtle enough that you probably will not be able to "feel" them accurately. The butt dyno has almost zero precision - I've had many kids report "very different" results from no real changes to a chip. Also, the butt dyno is much better for detecting rapid increases in torque than consistently more torque. Consistent torque is what makes a car fast, not how quickly torque increases. What this means concretely is that a car may "feel" faster on the butt dyno because it has sharp spikes of torque, but in reality it is slower than a car with a smoother powerband with gradual increases in torque.

Most ECUs seem to operate in two modes. In one mode, the ECU is monitoring as many engine sensors as possible, trying to get the best fuel economy. This mode is normally referred to as "closed loop" because it is a closed feedback system. In the other mode, the ECU is generally trying to achieve the greatest level of performance possible. This mode is normally called "open loop" because it does not continuously monitor sensors and compute fuel correction: simpler routines are used. It's difficult to change the exact behavior of the ECU under closed loop conditions because it requires an understanding and possibly a re-write of that portion of the code running the ECU. Open loop conditions are generally stored in the form of a table where the ECU "looks up" fuel and timing values using a relatively simple algorithm. In most cases, the open loop tables also serve as values to use as a base for fuel correction routines. Modifying these tables is the most basic way to retune a car, however it bears remembering that the ECU will be making adjustments to whatever fuel/timing information it has.

Beware of most aftermarket "chips": more often than not these programs just dump more fuel and increase timing greatly while doing things like raising revlimiters far beyond safe levels. There are very limited gains to be had from most "performance chips." Tuning not "chipping" generally produces usable, real world gains. That being said, changing the program of a ECU is generally not that tricky. First, it would probably be wise to focus on some basics of how ECUs work so that it is more apparent where we could makes changes to have a positive effect on performance.

Most ECUs seem to operate in two modes. In one mode, the ECU is monitoring as many engine sensors as possible, trying to get the best fuel economy. This mode is normally referred to as "closed loop" because it is a closed feedback system. In the other mode, the ECU runs a much simpler routine that is most often engaged at wide open throttle. This mode is normally called "open loop" because it does not continuously monitor sensors and compute fuel correction. Open loop conditions are generally stored in the form of a table where the ECU "looks up" fuel and timing values using a relatively simple algorithm. Modifying fuel and timing tables is the most basic way to retune a car, however it bears remembering that the ECU will be making adjustments to whatever information it has. In most cases, open loop table values serve as base values for closed loop fuel correction routines to adjust, but it is difficult to change the exact behavior of adjustment routines. Problematic closed loop correction routines require an understanding and possibly a re-write of the code running the ECU to be fixed properly.

With that out the way, we are now going to pretend that you now know what fuel and timing adjustments you would like to make, because an adequate explanation of how to tune a car is well beyond both the scope of this article and my expertise.

With that out the way, we are now going to pretend that you now know what fuel and timing adjustments you would like to make, because an adequate explanation of how to tune a car is well beyond both the scope of this article and my expertise. Proper tools and technique were briefly touched earlier, but by no means should be considered definitive.

Alternatively, you can use a ROM Editor. These programs are generally specific to one or more ECUs, and allow a more visual representation of the data inside the ECU. Ghettodyne (available at http://www.ghettodyne.com) is a free ROM editor that currently supports the PM6 (88-91 CRX/Civic Si) ECU. Fortunately PM6 ROMs will work in almost any 88-91 MULTI-POINT INJECTION CIVIC/INTEGRA ECU (PG7, PM6, PM7, PM8, PR4) so this is not as limiting as it initially sounds. To give you an idea of what ghettodyne looks like:

Alternatively, you can use a ROM Editor. Although these programs are generally specific to one or more ECUs, most ROM editors are fairly similar visually - Understanding Maps has a lot of pictures and more hands-on explanation of editor-based fuel and timing table adjustment. Ghettodyne (available at http://www.ghettodyne.com) is a free ROM editor that currently supports the PM6 (88-91 CRX/Civic Si) ECU. Fortunately PM6 ROMs will work in almost any 88-91 MULTI-POINT INJECTION CIVIC/INTEGRA ECU (PG7, PM6, PM7, PM8, PR4) so this is not as limiting as it initially sounds. To give you an idea of what ghettodyne looks like:

You can completely change the operating characteristics of an engine by changing the fuel tables around. As an example, a Trash.PM6? (88-91 Civic/CRX Si) ECU is normally used to run a D16A6, ~100HP. By little more than changing the fuel, ignition tables and the revlimiter, a Trash.PM6 can run a DOHC ZC, ~135HP, like it came out of the factory. Additionally, little more than even more fuel/ignition map changes and revlimiter changes are all that is needed to make it run a B18A/B18B or a B20B! In another more extreme example, a friend of mine recently had success running a 2G accord engine with a GM computer! Please, be careful changing your engine's fuel/timing tables - understand that timing changes can completely change the operating characteristics of the engine! You can destroy your engine in seconds with a bad program. Please be very careful, especially when doing baseline tunes as opposed to modifying an existing tune.

You can completely change the operating characteristics of an engine by changing the fuel tables around. As an example, a PM6 (88-91 Civic/CRX Si) ECU is normally used to run a D16A6, ~100HP. By little more than changing the fuel, ignition tables and the revlimiter, a PM6 can run a DOHC ZC, ~135HP, like it came out of the factory. Additionally, little more than even more fuel/ignition map changes and revlimiter changes are all that is needed to make it run a B18A/B18B or a B20B! In another more extreme example, a friend of mine recently had success running a 2G accord engine with a GM computer! Please, be careful changing your engine's fuel/timing tables - understand that timing changes can completely change the operating characteristics of the engine! You can destroy your engine in seconds with a bad program. Please be very careful, especially when doing baseline tunes as opposed to modifying an existing tune.

Fuel and timing tables are stored in the middle of the code running the ECU. Distinguishing them from code is generally not THAT hard because they "look" different than the pseudorandom data that runs the computer. A hex editor will let you manipulate the raw data in the ECU. Win Hex is a quality, shareware hexeditor available from www.download.com. You might want to grab some checksum utilities from www.keil.com as they're generally useful.

Fuel and timing tables are stored in the middle of the code running the ECU. Distinguishing them from code is generally not THAT hard because they "look" different than the pseudorandom data that runs the computer. A hex editor will let you manipulate the raw data in the ECU. WinHex is a quality, shareware hexeditor available from www.download.com. You might want to grab some checksum utilities from www.keil.com as they're generally useful.

Alternatively, you can use a ROM Editor. These programs are generally specific to one or more ECUs, and allow a more visual representation of the data inside the ECU. Ghettodyne (available at http://www.ghettodyne.com) is a free ROM editor that currently supports the Trash.PM6 (88-91 CRX/Civic Si) ECU. Fortunately Trash.PM6 ROMs will work in almost any 88-91 MULTI-POINT INJECTION CIVIC/INTEGRA ECU (PG7, Trash.PM6, PM7, PM8, PR4) so this is not as limiting as it initially sounds. To give you an idea of what ghettodyne looks like:

Alternatively, you can use a ROM Editor. These programs are generally specific to one or more ECUs, and allow a more visual representation of the data inside the ECU. Ghettodyne (available at http://www.ghettodyne.com) is a free ROM editor that currently supports the PM6 (88-91 CRX/Civic Si) ECU. Fortunately PM6 ROMs will work in almost any 88-91 MULTI-POINT INJECTION CIVIC/INTEGRA ECU (PG7, PM6, PM7, PM8, PR4) so this is not as limiting as it initially sounds. To give you an idea of what ghettodyne looks like:

If you have a OBD0 ECU, chipping the ECU might not be such an easy option for you. Almost ALL 90-91 Trash.PM6, PM7, PR4 and PP5(with catalytic converter) ECUs had external EPROMs, and are easy to change the program on. Almost all 88-89 PG7, Trash.PM6, PM7 and 88-91 PM8 ECUs did not have an external EPROM. It is possible to chip these ECUs, but it requires considerably more work and is beyond the scope of this article. The following ECU is a PM7 that does not have an external ROM:

If you have a OBD0 ECU, chipping the ECU might not be such an easy option for you. Almost ALL 90-91 PM6, PM7, PR4 and PP5(with catalytic converter) ECUs had external EPROMs, and are easy to change the program on. Almost all 88-89 PG7, PM6, PM7 and 88-91 PM8 ECUs did not have an external EPROM. It is possible to chip these ECUs, but it requires considerably more work and is beyond the scope of this article. The following ECU is a PM7 that does not have an external ROM:

http://www.pgmfi.org/resources/articles/Chipping_Basics_12-02/Trash.PM6tochip_small.jpg

http://www.pgmfi.org/resources/articles/Chipping_Basics_12-02/PM6tochip_small.jpg

%META:TOPICINFO{author="blundar" date="1077231960" format="1.0" version="1.1"}%

Introduction to ECU Chipping

With the move from carburetors to fuel injection, computers have assumed an important role in the proper functioning of an engine. The level of precise control possible with a ECU (Engine Control Unit - computer for running an engine) can not only allow for greatly improved fuel economy, but can also allow for fine tuning of an engine to a degree that is arguably impossible with the best carburetors. Many ECUs, including those made by Honda, do data interpolation, allowing them to intelligently compensate for engine conditions that fall "between" known states, allowing for an almost continuously variable response to varying engine conditions. Additionally, the ECU can make small corrections to fuel/timing based on the state of various engine sensors. It is probably fairly fair to say that from the factory, most manufacturers tune for fuel economy, emissions and poor quality gasoline as opposed to power and race gas. Honda is no exception to these rules about tuning. Basis for this can be seen very clearly by comparing European/US fuel and timing maps to Japanese timing maps for the same engine. Japanese have gasoline that is on average a minimum of about 10 octane points greater than gas sold in the US. Comparing JDM and USDM/EDM timing curves generally show the JDM maps having several degrees more spark advance, reflecting the manufacturer's expectation of better quality gasoline. I don't really have enough experience tuning or on a dyno to be able to say exactly what is possible, but you have to wonder about how much 205 HP out a 1.8L (ITR) can be improved on. However, I doubt it would surprise anyone if another 5-10 HP could be squeezed out of an ITR by HOURS on the dyno and some changes to the ECU program, particularly in the control over timing.

This does bring us to a valid point. Tuning is best something done on a dyno, or at least with something to give a very objective measure of how the car is responding. Wideband O2 meters and EGT probes can give you some idea of what is going on, but they are generally more effective at tuning air-fuel ratio than timing adjustment. The "butt dyno" is a totally inappropriate way to determine how the car is performing - most of the changes you will make to a computer program will be subtle enough that you probably will not be able to "feel" them. Beware of most aftermarket "chips": more often than not these programs just dump more fuel and increase timing greatly while doing things like raising revlimiters far beyond safe levels. There are very limited gains to be had from most "performance chips." Tuning not "chipping" generally produces usable, real world gains. That being said, changing the program of a ECU is generally not that tricky. First it would probably be wise to focus on some basics of how ECUs work so that it is more apparent where we could makes changes to have a positive effect on performance.

Most ECUs seem to operate in two modes. In one mode, the ECU is monitoring as many engine sensors as possible, trying to get the best fuel economy. This mode is normally referred to as "closed loop" because it is a closed feedback system. In the other mode, the ECU is generally trying to achieve the greatest level of performance possible. This mode is normally called "open loop" because it does not continuously monitor sensors and compute fuel correction: simpler routines are used. It's difficult to change the exact behavior of the ECU under closed loop conditions because it requires an understanding and possibly a re-write of that portion of the code running the ECU. Open loop conditions are generally stored in the form of a table where the ECU "looks up" fuel and timing values using a relatively simple algorithm. In most cases, the open loop tables also serve as values to use as a base for fuel correction routines. Modifying these tables is the most basic way to retune a car, however it bears remembering that the ECU will be making adjustments to whatever fuel/timing information it has.

You can completely change the operating characteristics of an engine by changing the fuel tables around. As an example, a Trash.PM6? (88-91 Civic/CRX Si) ECU is normally used to run a D16A6, ~100HP. By little more than changing the fuel, ignition tables and the revlimiter, a Trash.PM6 can run a DOHC ZC, ~135HP, like it came out of the factory. Additionally, little more than even more fuel/ignition map changes and revlimiter changes are all that is needed to make it run a B18A/B18B or a B20B! In another more extreme example, a friend of mine recently had success running a 2G accord engine with a GM computer! Please, be careful changing your engine's fuel/timing tables - understand that timing changes can completely change the operating characteristics of the engine! You can destroy your engine in seconds with a bad program. Please be very careful, especially when doing baseline tunes as opposed to modifying an existing tune.

With that out the way, we are now going to pretend that you now know what fuel and timing adjustments you would like to make, because an adequate explanation of how to tune a car is well beyond both the scope of this article and my expertise.

Fuel and timing tables are stored in the middle of the code running the ECU. Distinguishing them from code is generally not THAT hard because they "look" different than the pseudorandom data that runs the computer. A hex editor will let you manipulate the raw data in the ECU. Win Hex is a quality, shareware hexeditor available from www.download.com. You might want to grab some checksum utilities from www.keil.com as they're generally useful.

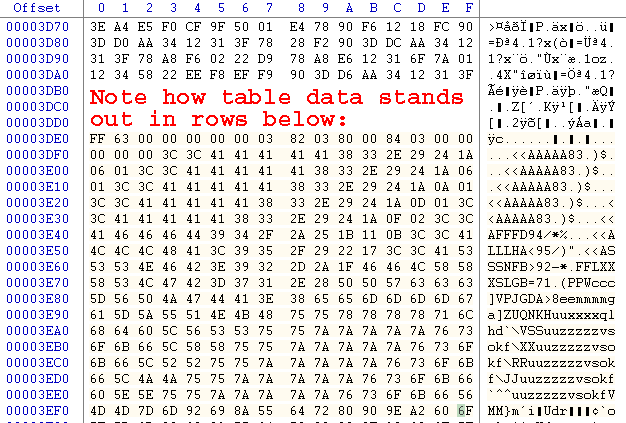

In winhex:

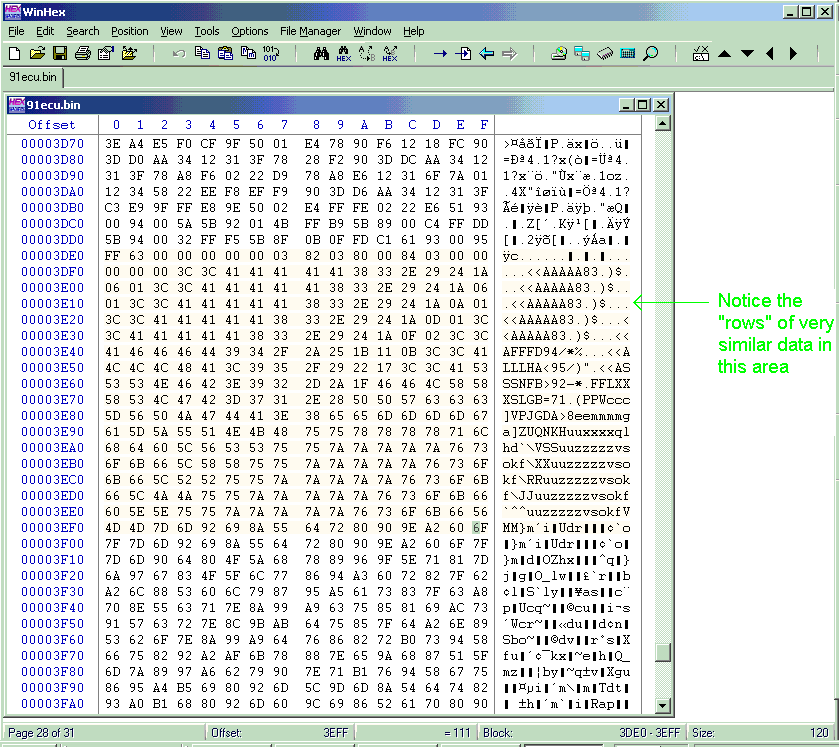

http://www.pgmfi.org/resources/articles/Chipping_Basics_12-02/winhex.gif

So, you've found the fuel and timing tables in your ECU's program, edit away. Most ECUs have a checksum routine - the checksum gods must be appeased after any changes to the ROM are made or the car will not run properly.

Alternatively, you can use a ROM Editor. These programs are generally specific to one or more ECUs, and allow a more visual representation of the data inside the ECU. Ghettodyne (available at http://www.ghettodyne.com) is a free ROM editor that currently supports the Trash.PM6 (88-91 CRX/Civic Si) ECU. Fortunately Trash.PM6 ROMs will work in almost any 88-91 MULTI-POINT INJECTION CIVIC/INTEGRA ECU (PG7, Trash.PM6, PM7, PM8, PR4) so this is not as limiting as it initially sounds. To give you an idea of what ghettodyne looks like:

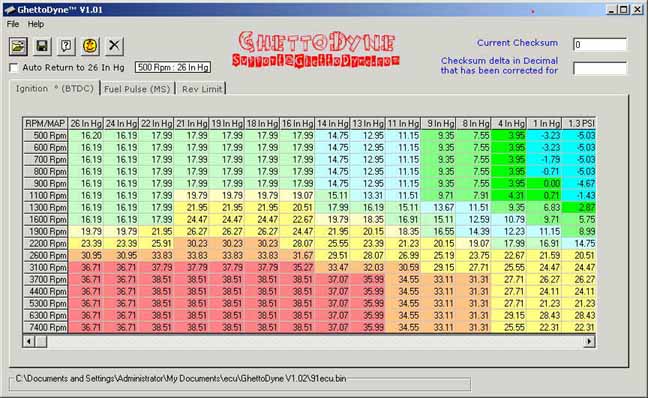

http://www.pgmfi.org/resources/articles/Chipping_Basics_12-02/ghettodyne_small.jpg

At this point, the assumption will be made (regardless of whether it is actually true) that you have successfully created a new ROM image and you want to put it into an ECU. The next step towards reprogramming is to take the electronic image you have created and program it into an EPROM(Erasable Programmable Read Only Memory). EPROMs for automotive use are generally 128K, 256K or 512k in size. Use the same size EPROM as the factory uses. Almost all 88-95 Hondas use a 27 C256 EPROM. (A quick note about chips: 27 CXXX chips are generally UV erasable - you need a special UV light; blacklights do not work. 28 CXXX are generally EEPROM - Electrically Erasable and are not pin-compatible... and 29 CXXX are generally Flash ROMs and are pin-compatible. There are exceptions to these rules, however.)

In order to program an EPROM, you will need a ROM burner. It does not really matter which model you get as long as it can program the chips you need. A cheap, hobbyist-oriented burner is available for less than $100 ready assembled (or less in kit form) from www.batronix.com. Another unit is available from www.xtronics.com and is the programmer of choice for Hondata. Needham Electronics also make a quality programmer. The point of all this is quite simply that it doesn't matter WHICH programmer you have; being able to program 2XC256 chips is what matters.

Now, with your new EPROM ready, crack the case of your ECU. All 92-95 ECUs made by Honda were able to accept an external EPROMs, even if they did not come with one from the factory. All 92-95 ECUs use the same procedure for chipping. Beginners beware of Japanese ECUs as they use surface mount components that are marginally harder to work with than US/European ECUs. The section of the example P28 93 Civic Si ECU that is important for chipping is outlined in red in the following picture: (Honda was nice and outlined it in a dashed white line for you on the board too)

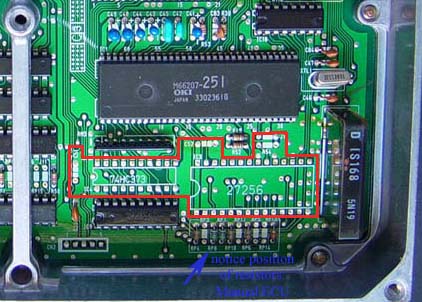

http://www.pgmfi.org/resources/articles/Chipping_Basics_12-02/P28chipping_small.jpg

First, you must de-solder the parts silkscreened in white on the circuit board. I purchased a Xytronics desoldering/soldering station with temperature control for under $400 shipped from Howard Electronics Inc. Professional desoldering tools with integrated vacuum sources can be obtained readily from ebay or other merchants - Pace and Metcal gear is always on ebay. You can get a desoldering tool from radio shack, but it does not work terribly well and I would highly recommend borrowing or buying a true desoldering iron if possible.

Once all the pads are desoldered and you can see through holes for components in the red section above, you need to start soldering in components. No bizarre components are used - everything should be readily obtainable from your local electronics store, Radio Shack, Digikey, Newark Electronics or just about any other electronic parts distributor. Honda was nice enough to label on the board where everything goes. Place the 74 HC373 chip on the board where indicated and solder it in place. R54 should be filled with a 1k to 1.2k resistor(the exact value does not matter). C51 and C52 are 0.1µf ceramic disc capacitors(12V or better will work fine). Place a 28 pin socket for the ROM where 27256 is marked. (BTW, spend a bit more money and get the much higher quality machined-pin sockets instead of the cheapy bent metal leaf type.) Once the socket is in place, place a the ROM you programmed earlier in it. Finally, connect J1 with a small wire to enable the external ROM. No changes other than cutting J1 are needed to restore the ECU to its original state.

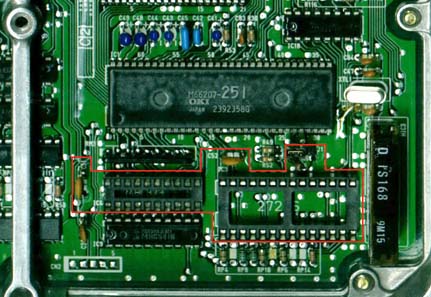

Here you can see a chipped P28 ECU. The person who chipped it used a socket for the 74HC373 as well as for the ROM socket, and used a real jumper instead of just connecting J1 with a wire. Nevertheless, it will give you an idea of what it should look like when you are done:

http://www.pgmfi.org/resources/articles/Chipping_Basics_12-02/P28done_small.jpg

If you have a OBD0 ECU, chipping the ECU might not be such an easy option for you. Almost ALL 90-91 Trash.PM6, PM7, PR4 and PP5(with catalytic converter) ECUs had external EPROMs, and are easy to change the program on. Almost all 88-89 PG7, Trash.PM6, PM7 and 88-91 PM8 ECUs did not have an external EPROM. It is possible to chip these ECUs, but it requires considerably more work and is beyond the scope of this article. The following ECU is a PM7 that does not have an external ROM:

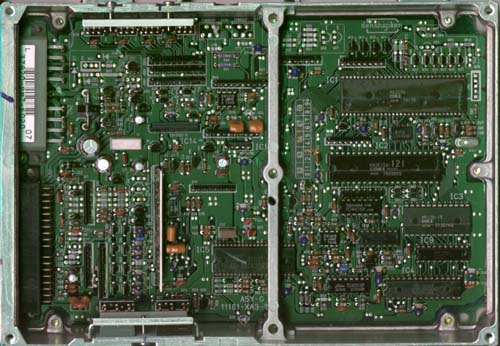

http://www.pgmfi.org/resources/articles/Chipping_Basics_12-02/trickyPM7small.jpg
